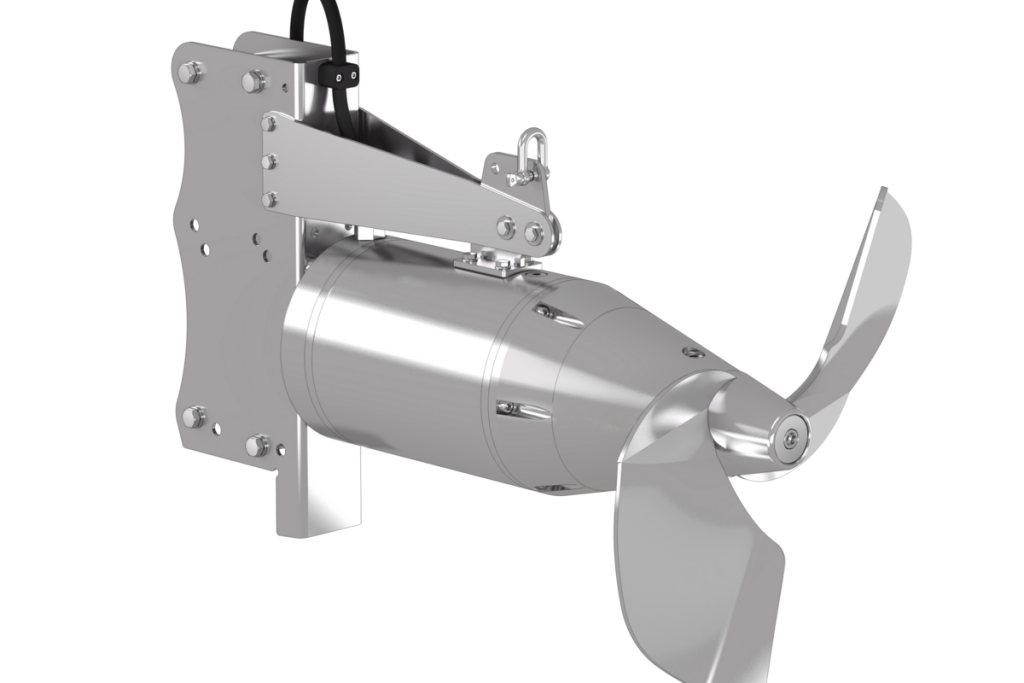

The B-MX submersible mixer guarantees effective mixing of the substrate. Its streamlined shape is impressive and produces an ideal flow pattern.
Components
Design and construction
| 1 | One-piece mixer housing | The one-piece housing is made of stainless steel to high precision. |
| 2 | Blades | The two-blade propeller is made entirely of stainless steel and mounted on the shaft. The smooth surface of the whole mixer allows liquid to reach the propeller without creating turbulence. |
| 3 | Motor | Four different motor ratings are available. The oil in the motor not only gives a long service life but also lubricates the tapered roller bearing. |
| 4 | Mechanical seal | The Börger mechanical seal, tried and tested over decades, separates the working end of the mixer from the motor. |
Operating principle
Effective substrate mixing
The Börger B-MX with aerodynamic blades is installed in a tank filled with liquid or in a liquid manure channel. Rotation of the mixer blades circulates the liquid, including the solids it contains. Thick floating layers and heavy sediment are mixed in.
The elegant design and smooth surface of the whole mixer allow liquid to reach the propeller without creating turbulence. This ensures high efficiency.
Advantages
The Börger B-MX submersible mixer — reliability and quality
Thought through down to the smallest detail, the design of the Börger B-MX offers outstanding quality, from the choice of materials to ease of servicing.
Advantages at a glance
| ✓ | Entirely of stainless steel | The housing and all parts in contact with the medium are made of stainless steel. |
| ✓ | Streamlined construction | The elegant design and absence of sharp corners ensure a smooth flow of liquid to the propeller without turbulence. |
| ✓ | A mechanical seal tried and tested over decades | The Börger mechanical seal, tried and tested over decades, separates the working end of the mixer from the motor. |
| ✓ | Cable entry in the protected rear section of the motor | An insulated yet easily replaceable cable entry supplies three-phase current through the connecting cable. A thermal sensor built into the winding monitors the motor and protects it against overload. |
| ✓ | Optimal efficiency | The aerodynamic design delivers high performance. |
| ✓ | Simple maintenance | The oil in the motor not only gives a long service life but also lubricates the tapered roller bearing, which keeps servicing costs to a minimum. |
Application examples
The B-MX mixer is used in tanks and circulation systems.
A submersible mixer can mix sludge, liquid manure, waste, feed and so on.
B-MX submersible mixers — circulation in a tank.
The B-MX mixer guarantees effective mixing of liquid and solids.
It is suitable for mixing sludge, liquid manure, waste and so on.
Mounting kits for Börger stainless steel tanks and for any other type of above-ground or underground tank.
B-MX submersible mixer for circulation systems
To keep liquid manure easy to pump afterwards, the channels in circulation or slalom mixing systems are arranged so that the manure is mixed from one working position in the circulation system.
All the liquid manure is mixed by a B-MX mixer installed in an opening in the wall.
The B-MX mixer creates a circulating flow of liquid manure in the mixing tunnel. The flow is directed away from the mixer.
Technical specifications
Technical specifications
There are four different versions of the B-MX mixer. You can choose the one that suits you best.
Overall dimensions of the B-Mz submersible mixer
| Type | A | B | C | D |
|---|---|---|---|---|
| B-MX 9 | 770 | 840 | 273 | 650 |
| B-MX 13 | 770 | 840 | 273 | 650 |
| B-MX 18 | 895 | 965 | 273 | 750 |
| B-MX 22 | 895 | 965 | 273 | 750 |
| Overall dimensions in mm | ||||
Technical specifications
| Type | B-MX 9 | B-MX 13 | B-MX 18 | B-MX 22 |
|---|---|---|---|---|
| Power [kW] | 9 | 13 | 18 | 22 |
| Capacity [m³/h] | 3.780 | 5.020 | 6.860 | 8.640 |
| Rated current [A] [water] |
19 | 24,5 | 35 | 41 |
| Speed [rpm] | 346 | 346 | 346 | 346 |
| Propeller diameter [mm] | 650 | 650 | 750 | 750 |
| Weight [kg] of the mixer |
170 | 180 | 220 | 240 |
| Weight [kg] of the circulation frame |
50 | 50 | 57 | 57 |
| Weight [kg] of the guide rail |
25 | 25 | 25 | 25 |
| Mounting opening A x B [mm] |
1.000 x 850 | 1.000 x 850 | 1.100 x 950 | 1.100 x 950 |
| Dimensions of the wall opening C x D [mm] |
750 x 800 | 750 x 800 | 850 x 850 | 850 x 850 |
| NOTE: The opening must be flush with the floor. | ||||
Control system
Bespoke solutions
On request our own electrical engineering department builds and programs a control system that matches your requirements exactly.
Parameter overview (selection)
- Fully automatic mixer control system
- Manual and / or automatic control
- Semi-automatic time control (timer)
- Control of several mixers is possible
- Time control via a weekly timer
- Star-delta starting
- and so on
