The Börger industrial grinder is equipment for breaking up solids in a liquid stream. Installed upstream of pumps, it protects them from blockages, seizing and premature failure. Börger grinders are used in the oil and gas industry, at treatment works, in industry and in agriculture — wherever contaminated liquid media have to be handled.
Why a grinder is needed upstream of a pump
When pumping wastewater, sludge, biomass and process liquids, the stream often contains solids — fibres, rags, polymers, bones, branches, metal objects. Letting such objects into a pump causes a number of problems:
- Blockages and seizing — long fibrous material wraps around impellers and lobes, bringing the equipment to a stop.
- Premature wear — solid particles cause abrasive wear of the housing and the wetted end of the pump.
- Seal failure — sharp objects damage mechanical seals and cause leaks.
- Costly downtime — every stop to clean the pump costs time and labour.
Installing a Börger grinder upstream of the pump solves these problems completely. All solids are reduced to a size that passes freely through the pump without causing blockages or damage.

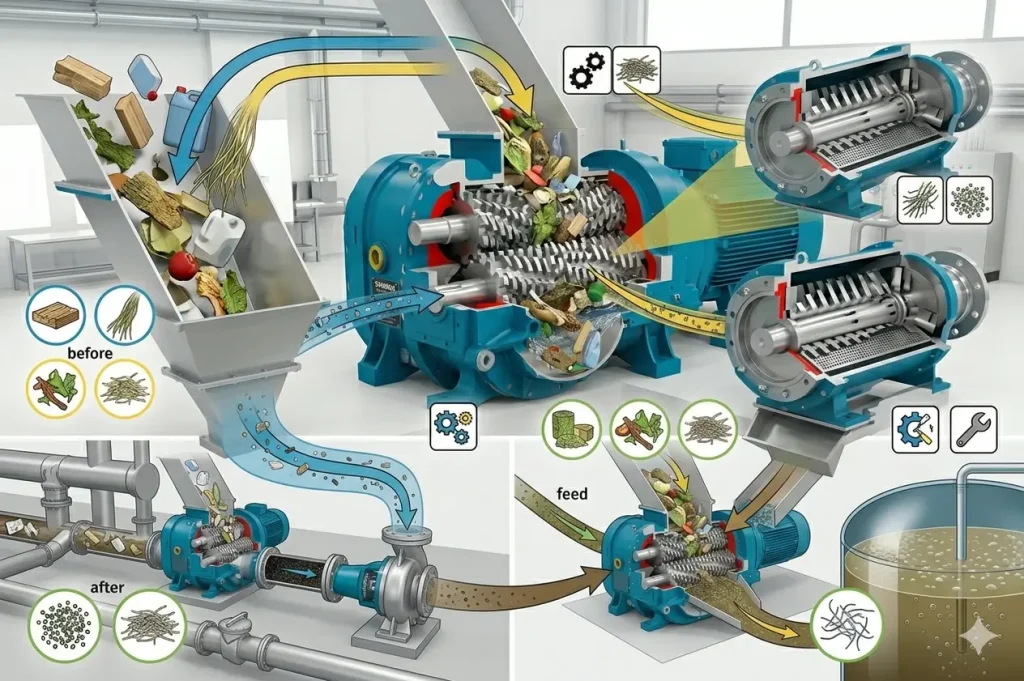

How the Börger grinder works
The grinder works by cutting solids between two cutting rotors turning towards each other. The liquid stream enters the working chamber, solid particles pass between the blades and are ground to the required size, after which the flow continues along the pipeline to the pump.
The rotor speed, the blade geometry and the clearances between them are chosen to give effective grinding with minimum hydraulic resistance. This allows the grinder to be built into existing pipework without a significant loss of capacity.
The cutting unit is designed so that blades can be replaced quickly in the field. MIP (Maintenance In Place) technology, used throughout Börger equipment, allows wear parts to be changed without removing the grinder from the pipeline.
Börger grinder models
Multichopper
The basic grinder model for most industrial duties. Used at treatment works, in livestock farming and at biogas plants. It deals effectively with fibrous and elastic material — rags, polythene, rope and long fibres. Capacity up to 1000 m³/h depending on the size.
Go to the product — Multichopper grinder
Multicrusher
A heavy-duty model for hard and large solids. Used in the oil and gas industry and at industrial plants with heavy process waste. It can break up bones, wood, small metal objects and hard deposits. The cutting unit is designed for higher loads.
Go to the product — Multicrusher grinder
Rotorrake
A specialised model for separating and grinding large solids ahead of the main grinder or pump. Used at sewage pumping stations and large treatment works where bulky objects are present in the flow. It combines the functions of a bar screen and a grinder in one device.
Go to the product — Rotorrake grinder
Where Börger grinders are used
Treatment works — protecting sewage pumps and mechanical treatment equipment from blockages. Installed upstream of submersible pumps in wastewater receiving tanks.
Oil and gas — grinding solids in oil sludge, drilling fluids and process liquids. Protecting field pumps from seizing.
Biogas plants — preparing biomass and substrates before they are fed into the reactor. Grinding plant residues, silage and other long-fibre components.
Agriculture and livestock farming — treating manure effluent before pumping and land application. Grinding straw, wool and other material.
Food industry — processing food waste and protecting equipment on production effluent treatment lines.
Advantages of Börger grinders
- Effective grinding of every type of solid — from soft fibres to hard objects
- Quick blade replacement in the field without removing the unit from the pipeline
- Low hydraulic resistance — system capacity is not reduced
- Long life of the cutting elements — made of hardened steel
- Reversing operation when a blockage occurs
- Compatible with pumps of any type and make
Asia Supply is the official supplier of Börger grinders in Kazakhstan. Our specialists will help select a model for your specific operating conditions and the type of medium being pumped.
Read more about this equipment in our article «Why grinders are needed in industry and the oil and gas sector» or take a look at the full range of Börger grinders.
